◎ 變壓器外置型全隔離單項調壓器

(使用功能及參數(shù)同”全隔離單相交流調壓模塊”)

EXTERNAL TRANSFORMER TYPE FULL  ISOLATION SINGLE PHASE AC VOLTAGE  REGULATOR

(FUNCTIONS AND PARAMETERS SAME  AS " FULL ISOLATION SINGLE PHASE AC  VOLTAGE REGULATOR MODULE")

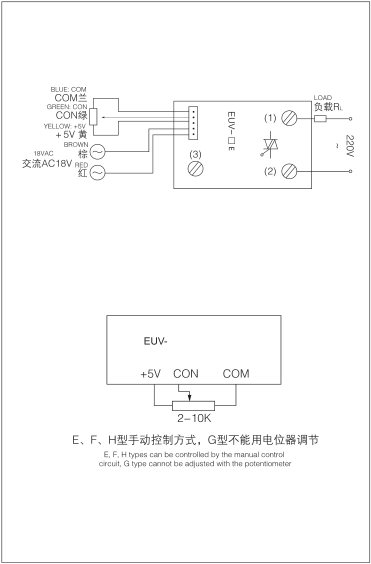

◆  The port functions of the SSR phase-shift trigger:

Red and brown ports are connected to the 18VAC secondary winding of the synchronous transformer;

Blue port is the internal common ground terminal;

Green port is the control terminal;

Yellow port is the +5V voltage terminal generated inside the module.

◆ SSR 移相觸發(fā)器的引腳功能：

紅色線 , 棕色線接同步變壓器的副邊繞組 18VAC;

蘭色線為內部接地端 ;

綠色線為控制端 ;

黃色線為模塊內部產生的 +5V 電壓端
