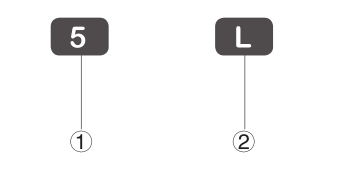

◎ 型號含義 Type meaning

② 單排 Pins lined in a row

◎ 產品概述 Product overview

◆ 額定電流：3A, 5Amps

◆ 額定電壓：220V/380VAC

◆ 控制電壓：3-32VDC

◆ 控制電流：≤ 10mA

◆ " 超低 " 的輸入電流

◆ 低輸出斷態(tài)漏電流

◆ 低輸出通態(tài)壓降

◆ 包含標準輸出的 R-C 緩沖器

◆ 標準的英規(guī) PCB 安裝尺寸

◆ Rated current: 3A, 5Amps

◆ Rated voltage: 220V/380VAC

◆ Control voltage: 3-32VDC

◆ Control current: ≤ 10mA

◆ "Ultra low" input current

◆ Low output off-state leakage current

◆ Low output on-state voltage drop

◆ Standard output R-C buffer

◆ British standard PCB mounting dimensions

說明：常用于空調機，捆鈔機及其它家用電器

Application: normally used in air conditioners, balers and other household appliances

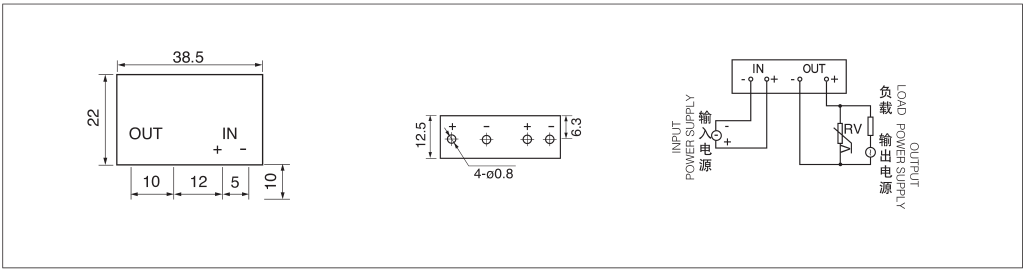

◎ 安裝尺寸及接線圖 Installation dimensions and wiring diagram
